P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

Certificat
Chine Shenzhen Longdaled Co.,Ltd certifications
Chine Shenzhen Longdaled Co.,Ltd certifications
Je suis en ligne une discussion en ligne

P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service
P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

Image Grand :  P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

Détails sur le produit:
Lieu d'origine: Shenzhen
Nom de marque: Longda LED
Certification: CE/RoHs/FCC/CCC/ISO9001/ISO14001
Numéro de modèle: P10
Conditions de paiement et expédition:
Quantité de commande min: 1 m²
Prix: Usd799~Usd1099/Sqm(price is negotiable)
Détails d'emballage: Emballage de boîtier de vol ou emballage de boîtier en contreplaqué
Délai de livraison: 15-18 jours
Conditions de paiement: L / C, T / T, Western Union, Moneygram
Capacité d'approvisionnement: 5000 m² par mois

P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

description de
Mettre en évidence:

P10 high brightness LED module

,

480mmx320mm outdoor LED display

,

front service aluminum LED panel

P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service
Outdoor high-brightness common cathode energy-saving display is designed for various outdoor environments. It ensures excellent heat dissipation and durability against extreme weather conditions. With common cathode power technology, it delivers higher energy efficiency, brighter visuals, and more stable operation compared to traditional displays. Ideal for outdoor advertising, public information systems, and large-scale events, it offers exceptional visibility even under direct sunlight while reducing power consumption and maintenance costs.
Features:
  • Hub board connection
  • Hidden cable box design
  • High brightness
  • Energy saving design

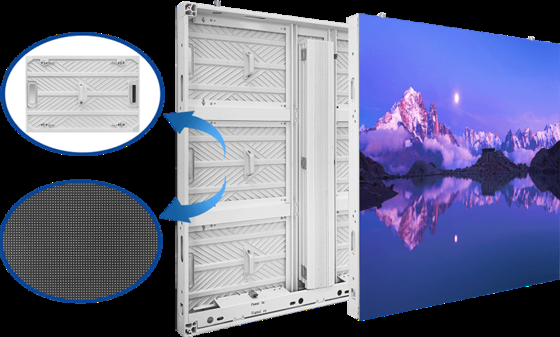

  • Front and rear service
  • Curved splicing
  • High refresh rate
  • Self-cooling technology

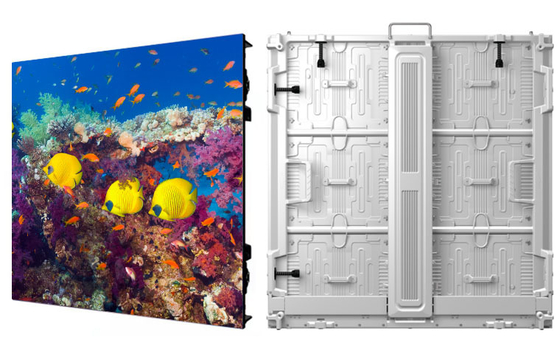

Technical Parameters
Pitch P10
Module Size 480mm*320mm
Module Resolution 48*32
Cabinet Resolution 96*96
Cabinet Size 960mm*960mm
Service Front Service
Circuit Common Cathode Circuit
G.w/Cabinet 4.8kg~5kg
Brightness 5000cd/m²(3000-8000cd)
Refresh Rate 3840Hz
Viewing Angel Horizontal 160°Vertical 140°
Working Voltage 100-240V,AC 50-60Hz
Connection Method Harawired
Max Consumption/cabinet ≤450W
Ave Consumption/cabinet ≤260W
Applications

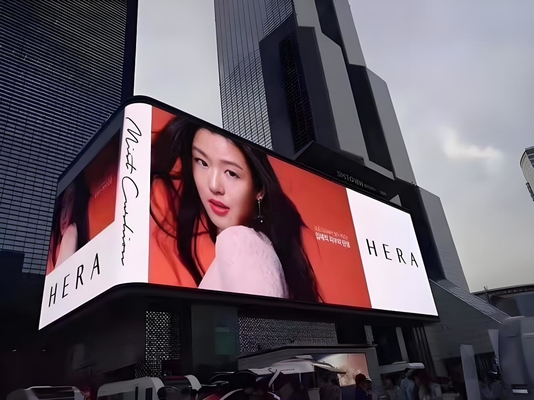

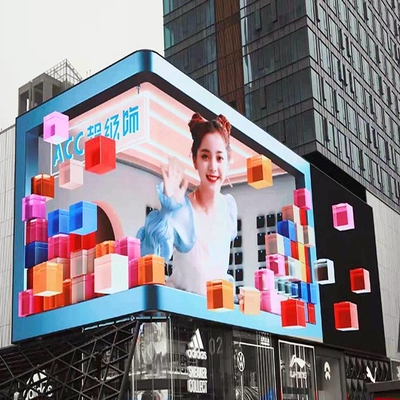

This display is ideally suited for outdoor advertising billboards, public transportation hubs, stadiums, and large-scale event venues. The robust aluminum construction provides superior heat dissipation and weather resistance, guaranteeing reliable performance in various conditions.
P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service 0 P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service 1
